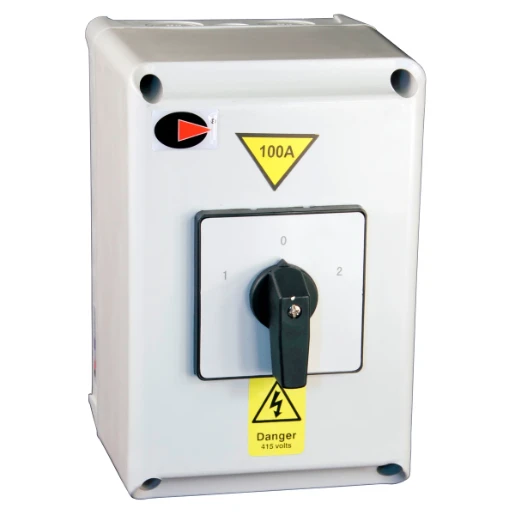

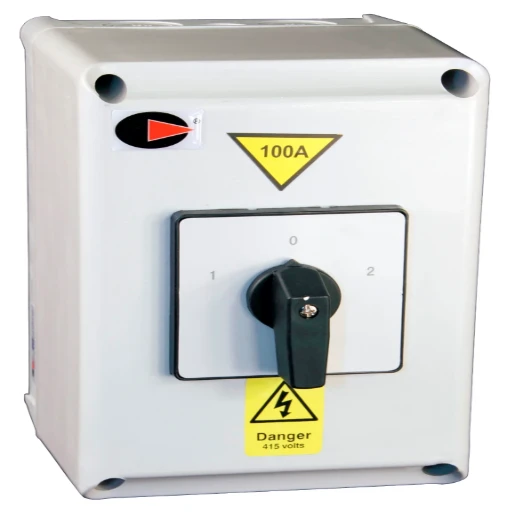

Steeple 4 Pole 100A Insulated Changeover Switch
Part Number:
2500550421
Mfr Number:
CS/100/4P
- Product Type:
- Switchgear
My Price
£131.11 (exc. VAT) / EA
Please Log In
Guest users can proceed to checkout. To access your trade account log in below.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
A 4-pole, 100A insulated changeover switch with centre OFF position. The switch has an IP65 rated plastic enclosure and has knockouts at the top and bottom.
- · Centre OFF position
- · 4 Pole
- · 100A
- · IP65 plastic enclosure
- · Knockouts at the top & bottom
- · Max. cable capacity: 35mm²
- · IEC 60947-3
- · H:240mm x W:160mm x D:196mm
Technical Specifications
Technical Specifications
Switch disconnector | |
| Rated permanent current at AC-23, 400 V | - A |
|---|---|
| Suitable for intermediate mounting | No |
| Suitable for distribution board installation | No |
| Suitable for front mounting centre | No |
| Suitable for front mounting 4-hole | No |
| Suitable for floor mounting | No |
| Version as reversing switch | No |
| Voltage release optional | No |
| Motor drive optional | No |
| Version as maintenance-/service switch | No |
| Version as safety switch | No |
| Version as main switch | No |
| Version as emergency stop installation | No |
| Motor drive integrated | No |
| Interlockable | No |
| Rated operating voltage | - V |
| Device construction | Complete device in housing |
|---|---|
| Rated permanent current at AC-21, 400 V | - A |
| Switching power at 400 V | - kW |
| Max. rated operation voltage Ue AC | - V |
| Number of auxiliary contacts as change-over contact | - |
| Rated operation power at AC-23, 400 V | - kW |
| Rated short-time withstand current lcw | - kA |
| Number of switches | - |
| Conditioned rated short-circuit current Iq | - kA |
| Number of auxiliary contacts as normally closed contact | - |
| Number of poles | 4 |
| Rated permanent current Iu | 100 A |
| Number of auxiliary contacts as normally open contact | - |
| Degree of protection (IP), front side | IP65 |
| Rated operation power at AC-3, 400 V | - kW |
